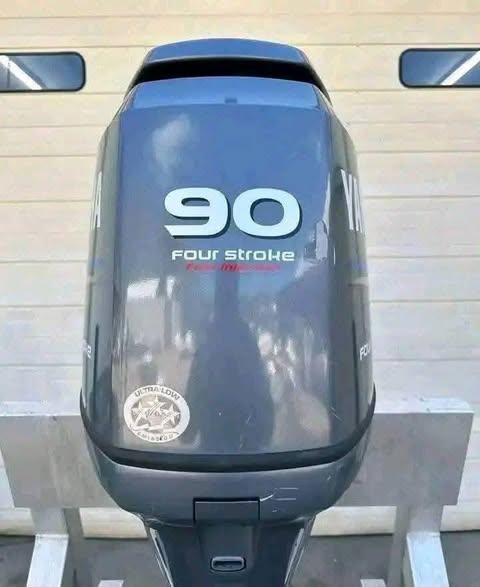

The Yamaha 90HP Outboard Motor is a high-performance, mid-range 4-stroke engine engineered for bay boats, center consoles, pontoons, deep-V aluminum hulls, and commercial skiffs. Built on a generous 1.8-liter, 16-valve single overhead camshaft (SOHC) platform, this engine delivers class-leading displacement, exceptional hole-shot acceleration, and mid-range pulling power without adding unnecessary weight to the transom.
As part of our dedicated Yamaha Outboard Motors pillar hub, this 90HP outboard represents an ideal choice for boaters upgrading from smaller displacements. You can also explore our broader catalog of 4-Stroke Outboard Motors to compare horsepower tiers across our complete inventory.
Utilizing precision multi-point Electronic Fuel Injection (EFI), the 90HP platform optimizes fuel combustion for maximum economy and range. Its compact, balanced block design reduces overall vibration while preserving optimal boat draft in shallow-water conditions.
Advanced Fuel Injection & 1.8L Displacement
Every Yamaha 90HP Outboard Motor features Multi-Point Electronic Fuel Injection (EFI) paired with an advanced Engine Control Module (ECM). The ECM constantly adjusts fuel delivery based on atmospheric conditions and engine loads, ensuring turn-key starts, smooth idling, and maximum fuel range.
The engine integrates seamlessly with Yamaha Command Link® digital displays, letting captains monitor real-time fuel flow, engine hours, water temperature, and battery output. For trolling efficiency, Yamaha’s Variable Trolling RPM System (VTS®) lets you fine-tune engine speeds in 50-RPM increments via the helm or tiller switch. A powerful 35-amp alternator ensures modern fish finders, sound systems, and livewell pumps stay continuously powered.
Marine Corrosion Defense & Casing Construction
Constructed to thrive in harsh saltwater environments and freshwater lakes alike, Yamaha manufactures this 90HP engine block using proprietary YDC-30 aluminum alloy. Multi-layer electro-deposition paint finishes, topped with a tough clear acrylic coat, safeguard external surfaces against salt corrosion, UV fading, and oxidation.
Internal cooling passages feature sacrificial anodes positioned to prevent galvanic corrosion within internal water jackets. Post-trip maintenance is quick and easy thanks to a front-mounted freshwater flushing port, allowing you to flush salt and sand using a standard garden hose without running the engine.
Quiet Operation & Hydrodynamic Gearcase Design
Featuring a tuned intake manifold, silencer passages, and heavy-duty rubber engine mounts, the Yamaha 90HP Outboard Motor provides smooth operation with exceptionally low noise output. Passengers can talk easily at the helm without straining over engine roar during long runs across open water.
The lower unit features a hydrodynamic gearcase engineered to slice through water with low drag, improving top-end speed and fuel economy. Heavy-duty spiral bevel gears ensure precise gear engagement and smooth shifting when working around docks or tight river bends.
Technical Specifications
| Feature | Specification |
| Engine Type | 4-Stroke, 16-Valve SOHC Inline 4-Cylinder |
| Displacement | 1,832 cc (1.8L) |
| Bore x Stroke | 81.0 mm x 88.9 mm |
| Full Throttle RPM Range | 5,000 – 6,000 RPM |
| Fuel Delivery | Multi-Point Electronic Fuel Injection (EFI) |
| Alternator Output | 35 Amp |
| Gear Ratio | 2.15:1 |
| Dry Weight | ~353 lbs (160 kg) |
| Recommended Oil | Yamalube® 4M FC-W® 10W-30 |
| Trim & Tilt | Power Trim & Tilt |
Industry Standards & Certification
Yamaha marine engines are built to comply with international marine standards. To read more about vessel performance recommendations, hull loading guidelines, and environmental standards, visit the National Marine Manufacturers Association (NMMA) and review clean air regulations established by the U.S. Environmental Protection Agency (EPA).
Choosing the Right Shaft Length & Rigging
Selecting the correct shaft length is critical to ensure proper propeller submergence and prevent ventilation. The Yamaha 90HP Outboard Motor is available in 20-inch (L) and 25-inch (XL) shaft lengths to fit standard and deep transom designs. This model configures cleanly with traditional mechanical cable systems or Yamaha’s Multifunction Tiller Handle setup.
Frequently Asked Questions
Q: What fuel octane rating is recommended for the Yamaha 90HP Outboard Motor?
A: Yamaha recommends using 87 Octane unleaded gasoline. For long-term fuel system health, using 89 Octane ethanol-free marine fuel is strongly recommended.
Q: Can this 90HP outboard be equipped with a tiller handle?
A: Yes, this model supports Yamaha’s optional Multifunction Tiller Handle, placing throttle, shift, power trim, and variable trolling controls in one grip.
Q: How does the 1.8L displacement benefit performance compared to smaller 90HP engines?
A: The larger 1.8-liter displacement provides superior low-end and mid-range torque, allowing heavier boats to plane faster and maintain cruising speeds with lower engine stress.
Q: Does this engine come with factory warranty coverage?
A: Yes, all new Yamaha engines sold through Amita Outboards carry full manufacturer warranty coverage. Please refer to our Warranty Policy for full details.
Q: How is this engine packaged and shipped?
A: Outboards are secured inside heavy-duty wooden shipping crates and delivered via freight lines. Review our Shipping & Freight Policy for delivery arrangements and liftgate options.
Disclaimer: Product specifications, engine dimensions, weight, and availability are subject to manufacturer updates. Always verify transom height and boat weight capacities prior to installation.
