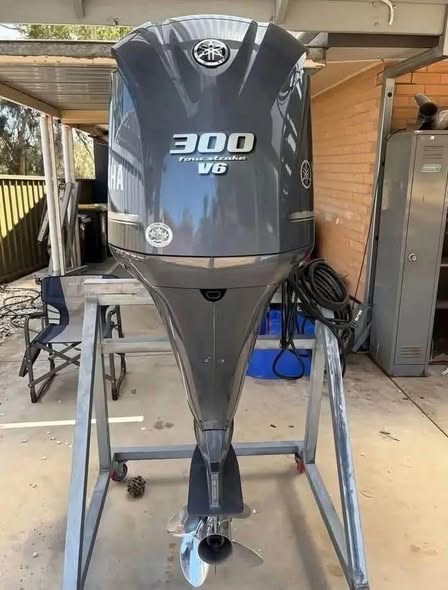

The Yamaha F300 V6 Outboard Motor represents the pinnacle of offshore four-stroke engineering, delivering unrivaled power-to-weight performance, exceptional fuel efficiency, and legendary reliability. Built with Yamaha’s big-bore 4.2-liter displacement and advanced plasma-fused sleeveless cylinder technology, this engine maximizes cylinder displacement while keeping the overall engine footprint light and compact. Engineered for single and multi-engine offshore applications, this flagship powerplant delivers explosive hole shots and smooth, economical cruising performance.
As part of our dedicated Yamaha Outboard Motors pillar hub, this engine offers industry-leading durability for serious anglers and commercial operators. You can also explore our broader catalog of 4-Stroke Outboard Motors to compare high-horsepower powerplants across all leading marine brands.
Utilizing precision multi-point Electronic Fuel Injection (EFI), the 4.2L V6 platform optimizes fuel-to-air delivery across all RPM ranges. Its streamlined weight distribution improves transom draft, ensuring your center console, bay boat, or sportfishing vessel maintains exceptional balance in rough water.
Advanced Fuel Injection & Variable Camshaft Timing
Every Yamaha F300 V6 Outboard Motor incorporates Variable Camshaft Timing (VCT), which adjusts air intake timing relative to engine speed. This dramatically increases low-end and mid-range torque, allowing heavy offshore hulls to plane faster and maintain cruising efficiency through heavy swells.
The integrated Engine Data Collector communicates directly with digital command displays and Helm Master® EX systems, monitoring oil pressure, cooling temperatures, and engine hours in real time. For trolling precision, Yamaha’s Variable Trolling RPM System (VTS®) lets captains dial in exact engine speeds in 50-RPM increments. Furthermore, a high-output 50-to-70 amp alternator keeps modern multi-screen displays, radar systems, and livewell pumps fully powered all day.
Marine Corrosion Defense & Casing Construction
Designed to thrive in demanding saltwater environments, Yamaha builds this 300HP engine block using proprietary YDC-30 aluminum alloy. Plasma-fused sleeveless cylinder walls create a micro-textured surface that drastically reduces friction while offering superior resistance to wear and thermal stress.
Multiple electro-deposition paint layers topped with a clear acrylic coat shield external metal surfaces from harsh salt air and UV degradation. Internal cooling passages are equipped with strategically positioned sacrificial anodes to counteract galvanic corrosion. Maintenance remains hassle-free thanks to an accessible, front-mounted freshwater flushing port that lets you rinse salt and marine growth without starting the engine.
Quiet Operation & Hydrodynamic Gearcase Design
Engineered with tuned intake manifolds, labyrinth exhaust passages, and heavy-duty rubber engine mounts, the Yamaha F300 V6 Outboard Motor operates with minimal vibration and whisper-quiet noise levels. Captains and crew can communicate clearly at the helm, even while running at wide-open throttle.
The hydrodynamic lower unit features Thrust Enhancing Reverse Exhaust, which redirects exhaust bubbles away from the propeller below 2500 RPM in reverse. This ensures maximum propeller bite on clean water, giving you pinpoint control when docking or maneuvering in tight marina slips.
Technical Specifications
| Feature | Specification |
| Engine Type | 60° V6 / 24-Valve DOHC with VCT |
| Displacement | 4,169 cc (4.2L) |
| Bore x Stroke | 96.0 mm x 96.0 mm |
| Full Throttle RPM Range | 5,000 – 6,000 RPM |
| Fuel Delivery | Multi-Point Electronic Fuel Injection (EFI) |
| Alternator Output | 50 – 70 Amp |
| Gear Ratio | 1.75:1 |
| Dry Weight | ~551 lbs (250 kg) |
| Recommended Oil | Yamalube® 4M FC-W® 10W-30 / 20W-40 |
| Trim & Tilt | Power Trim & Tilt |
Industry Standards & Certification
Yamaha marine engines are manufactured to strictly exceed global safety, performance, and environmental standards. To learn more about vessel performance ratings, sound testing, and structural safety, visit the National Marine Manufacturers Association (NMMA) and review baseline clean air requirements established by the U.S. Environmental Protection Agency (EPA). Choosing an NMMA-certified motor guarantees your vessel complies with rigorous regulatory testing.
Choosing the Right Shaft Length & Rigging
Selecting the proper shaft length is vital for maintaining prop depth and preventing engine ventilation. The Yamaha F300 V6 Outboard Motor is available in 25-inch (X), 30-inch (U), and 35-inch (J) shaft configurations to accommodate diverse offshore transom heights and modern multi-engine brackets. This outboard integrates seamlessly with Yamaha Digital Electronic Control (DEC) fly-by-wire throttles and Integrated Digital Electric Steering (DES).
Frequently Asked Questions
Q: What fuel octane is recommended for the Yamaha F300 V6 Outboard Motor?
A: Yamaha recommends 89 Octane ethanol-free marine gasoline for optimal performance and fuel system protection.
Q: Can I use Helm Master EX steering controls with this motor?
A: Yes, the Yamaha F300 V6 is fully compatible with Yamaha Helm Master® EX digital controls, joystick steering, and autopilot integration.
Q: How do I know which shaft length my boat requires?
A: Measure vertically from the top edge of your boat’s transom to the bottom point of the hull. Standard center consoles typically require a 25-inch shaft, deep-V hulls require a 30-inch shaft, and stepped multi-engine transoms may require a 35-inch shaft.
Q: Does this engine come with manufacturer warranty coverage?
A: Yes, all new Yamaha outboard engines sold through Amita Outboards include full factory warranty protection. Check our Warranty Policy for complete details.
Q: How are engines packaged and shipped?
A: Engines are secured inside heavy-duty wooden marine shipping crates and dispatched via freight line with optional liftgate delivery. Review our Shipping & Freight Policy for transit estimates.
Disclaimer: Product specifications, engine dimensions, weight, and availability are subject to manufacturer updates. Always verify transom height and boat weight capacities prior to installation.
