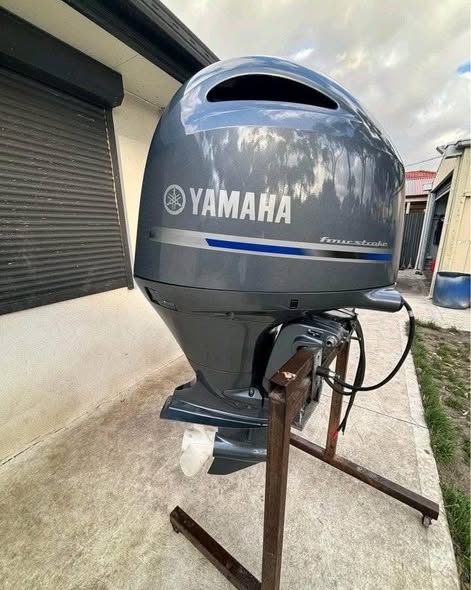

The Yamaha 175HP Outboard Motor delivers lightweight, high-displacement 4-stroke performance engineered specifically for center consoles, bay boats, pontoons, and deep-V aluminum craft. Built on an advanced 2.8-liter double overhead camshaft (DOHC) platform, this inline four-cylinder engine produces impressive mid-range punch and hole-shot acceleration that rivals traditional V6 outboards—without the added weight.
As part of our dedicated Yamaha Outboard Motors pillar hub, this engine offers an ideal blend of fuel economy and power. You can also explore our broader catalog of 4-Stroke Outboard Motors to evaluate horsepower options across our full line of marine propulsion engines.
Utilizing precision multi-point Electronic Fuel Injection (EFI), the 175HP platform optimizes fuel combustion for maximum cruising range. Its streamlined powerhead layout reduces total transom weight, helping maintain optimal hull draft and overall boat balance across changing sea conditions.
Advanced Fuel Injection & Variable Camshaft Timing
Every Yamaha 175HP Outboard Motor incorporates Variable Camshaft Timing (VCT), which adjusts air intake timing according to engine RPM. This dramatically boosts low-end and mid-range torque, allowing heavier vessels to plane faster and maintain speed through choppy turns.
The integrated Engine Data Collector pairs with digital command displays to monitor critical metrics including oil pressure, water temperature, and operating hours in real time. For trolling enthusiasts, Yamaha’s Variable Trolling RPM System (VTS®) lets captains dial in exact engine speeds in 50-RPM increments via the helm control or tiller handle switch. A high-output 50-amp alternator ensures onboard electronics, fish finders, and baitwell pumps remain fully powered throughout long journeys.
Marine Corrosion Defense & Casing Construction
Engineered to withstand demanding saltwater and freshwater environments, Yamaha constructs this 175HP engine housing using proprietary YDC-30 aluminum alloy. Multiple electro-deposition paint coats, topped with an acrylic resin clear coat, shield external metal surfaces against corrosion, oxidation, and fading.
Internal cooling passages feature strategically located sacrificial anodes that counteract galvanic corrosion. Maintenance is quick and hassle-free thanks to an upfront, easy-access freshwater flushing port, which allows boaters to flush salt and debris out of the cooling system using a standard garden hose without turning the engine on.
Quiet Operation & Hydrodynamic Gearcase Design
Featuring a tuned intake manifold and heavy-duty rubber engine mounts, the Yamaha 175HP Outboard Motor runs smoothly with minimal cowl vibration and low operating sound levels. Passengers can converse comfortably at the helm during full-throttle cruising.
The lower unit boasts a hydrodynamic gearcase designed to slice through water efficiently, reducing drag and improving top-end speed. Heavy-duty internal gearing handles sudden throttle changes smoothly, delivering predictable handling and confident control when docking or maneuvering in tight channels.
Technical Specifications
| Feature | Specification |
| Engine Type | 4-Stroke, DOHC Inline 4-Cylinder |
| Displacement | 2785 cc (2.8L) |
| Bore x Stroke | 96.0 mm x 96.2 mm |
| Full Throttle RPM Range | 5,000 – 6,000 RPM |
| Fuel Delivery | Multi-Point Electronic Fuel Injection (EFI) |
| Alternator Output | 50 Amp |
| Gear Ratio | 1.86:1 |
| Dry Weight | ~480 lbs (218 kg) |
| Recommended Oil | Yamalube® 4M FC-W® 10W-30 |
| Trim & Tilt | Power Trim & Tilt |
Industry Standards & Certification
Yamaha marine engines are built to meet or exceed strict international marine standards. To learn more about vessel performance guidelines, hull safety ratings, and environmental compliance, visit the National Marine Manufacturers Association (NMMA) and review emissions guidelines outlined by the U.S. Environmental Protection Agency (EPA). Choosing NMMA-certified motors ensures your vessel operates under tested safety and quality standards.
Choosing the Right Shaft Length & Rigging
Selecting the proper shaft length is necessary to keep your propeller fully submerged and prevent ventilation. The Yamaha 175HP Outboard Motor is available in 20-inch (L) and 25-inch (XL) shaft choices to fit standard and deep transom heights. This engine integrates cleanly with both traditional mechanical controls and Yamaha’s Digital Electronic Control (DEC) system for effortless throttle feel and smooth shifting response.
Frequently Asked Questions
Q: What fuel octane is recommended for the Yamaha 175HP Outboard Motor?
A: Yamaha recommends using 89 Octane ethanol-free marine gasoline for optimal performance, though standard 87 Octane unleaded fuel is acceptable.
Q: Can I use digital controls with this 175HP engine?
A: Yes, this model is available with configurations compatible with Yamaha Digital Electronic Control (DEC) systems as well as standard mechanical cables.
Q: How do I select between a 20-inch and 25-inch shaft?
A: Measure vertically from the top of your boat’s transom to the bottom point of the hull. A 20-inch measurement requires a Long (L) shaft, while a 25-inch measurement calls for an Extra Long (XL) shaft.
Q: Does this engine come with factory warranty coverage?
A: Yes, all new Yamaha engines sold through Amita Outboards carry full manufacturer warranty coverage. Check our Warranty Policy for complete details.
Q: How is this engine delivered?
A: Outboards are bolted into custom wooden shipping frames and delivered via heavy freight line. Liftgate services can be scheduled at checkout; see our Shipping & Freight Policy for additional details.
Disclaimer: Product specifications, engine dimensions, weight, and availability are subject to manufacturer updates. Always verify transom height and boat weight capacities prior to installation.
