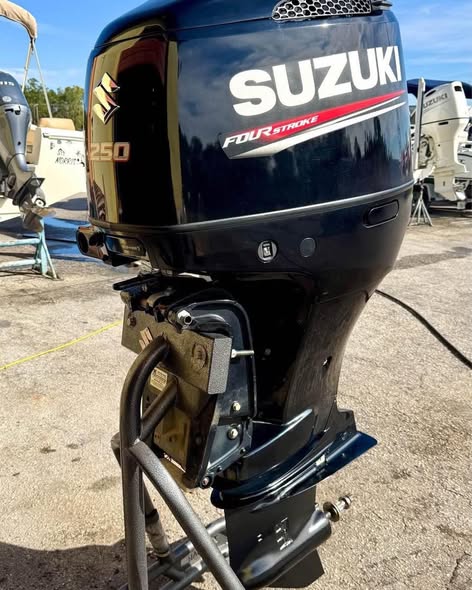

The **Suzuki DF250ATX 250HP outboard** is engineered for heavy-duty offshore applications, commercial hulls, and high-performance repowers. Built on a massive 4.0-liter 55-degree V6 powerhead, this model delivers massive displacement and high low-end torque without relying on forced induction.
Equipped with Suzuki’s multi-point Electronic Fuel Injection (EFI), Variable Valve Timing (VVT), and signature Lean Burn technology, the Suzuki 250HP 4-stroke outboard combines instantaneous throttle response with exceptional long-range fuel efficiency for offshore fishing and cruising.
Complete Technical Specifications Suzuki DF250ATX 250HP
-
Model Year: 2020
-
Horsepower: 250 HP
-
Engine Type: 55° V6, DOHC 24-Valve with VVT
-
Displacement: 245.6 cu. in. (4028 cc)
-
Control Type: Mechanical (Cable Control)
-
Fuel Delivery: Multi-Point Sequential Electronic Fuel Injection (EFI)
-
Starting System: Electric Start
-
Shaft Length: 25 in. (Extra Long Shaft)
-
Full Throttle RPM Range: 5500 – 6100 RPM
-
Weight: Approx. 604 lbs (274 kg)
-
Gear Ratio: 2.29:1
-
Alternator Output: 54 Amp
-
Trim & Tilt: Power Trim and Tilt
Performance Features of the Suzuki DF250ATX 250HP outboard
Variable Valve Timing (VVT)
The primary performance advantage of this Suzuki 250HP 4-stroke outboard is its Variable Valve Timing. By optimizing intake valve opening and closing timing according to engine speed, VVT delivers superior low-end to mid-range acceleration while maintaining maximum top-end horsepower.
Suzuki Lean Burn Control System
Designed to maximize range on long offshore runs, the integrated Lean Burn technology automatically monitors engine operating parameters to feed a leaner air-to-fuel mixture during cruise, saving up to 15% to 20% in fuel consumption over traditional fuel metering systems.
Offset Driveshaft & Two-Stage Gear Reduction
The DF250ATX features Suzuki’s offset driveshaft paired with a two-stage gear reduction system (2.29:1 gear ratio). This allows the motor to swing a larger diameter propeller, translating pure engine displacement into immediate hole-shot thrust.
Advanced Corrosion Defense & Saltwater Protection
-
Anti-Corrosion Coating: Applied directly over high-grade marine aluminum alloy, Suzuki’s multi-layer finish resists oxidation and paint degradation in harsh saltwater environments.
-
Dual Freshwater Flush Ports: Dual internal flushing ports make it quick and effortless to rinse salt and sediment out of internal cooling channels using standard garden hoses.
-
Heavy-Duty Anodes: High-capacity sacrificial zinc anodes are distributed throughout the cooling jacket, transom bracket, and lower gear housing to shield against galvanic corrosion.
Marine Engineering & Weight Balance
By incorporating an offset driveshaft, the Suzuki 250HP 4-stroke outboard shifts the engine’s powerhead forward over the transom pivot point. This design improves boat handling by moving the center of gravity forward, reducing stern squatting when coming onto plane and stabilizing the hull in heavy seas.
Whether you are upgrading an older 2-stroke V6 or repowering an offshore center console, this 4.0L platform offers quiet running, low vibration, and clean combustion that meets strict global marine emission standards.
Installation, Maintenance & Setup Guidelines
When installing or servicing your Suzuki 250HP 4-stroke outboard, staying up to date with routine maintenance intervals ensures long-term operational safety and peak engine performance.
According to independent research on marine engine corrosion mechanics from the Association for Materials Protection and Performance (AMPP), routine freshwater flushing and active anode replacement are crucial to preventing localized pitting in aluminum marine alloys exposed to coastal environments. Additionally, environmental protection guidelines from the U.S. Environmental Protection Agency (EPA) emphasize maintaining sealed fuel systems and proper engine tuning to limit marine hydrocarbon emissions.
Related Marine Equipment & Categories
To complete your boat build, explore our related outboard categories:
-
View our full selection of Suzuki Outboard Motors to browse more V6 and inline options.
-
Check out Yamaha Outboard Motors for alternative 250HP repower packages.
-
Explore our full range of Mercury Marine Engines or browse all options in our main Outboard Motor Shop.
-
Have questions about mechanical rigging, freight shipping, or warranty terms? Visit our FAQs or contact us directly via our Contact Page.
Frequently Asked Questions (FAQ)
What battery is recommended for the Suzuki DF250ATX 250HP outboard?
A 12-volt marine battery rated for a minimum of 1000 Marine Cranking Amps (MCA) or 800 Cold Cranking Amps (CCA) is required to support the high-torque starter and 54-amp alternator system.
Is the DF250ATX mechanical or fly-by-wire?
The DF250ATX is a mechanical cable-controlled model (“T” = Power Trim/Tilt + Electric Start, “X” = 25″ Shaft). If you are looking for fly-by-wire digital electronic controls (DEC), look for the DF250AP series.
What type of oil does the Suzuki 4.0L V6 outboard require?
Use FC-W certified SAE 10W-40 or 10W-30 4-stroke marine engine oil. FC-W rated oils contain specialized rust and anti-shear additives designed for high-RPM marine operation.
Does this engine require high-octane premium fuel?
No. The DF250ATX operates efficiently on standard unleaded pump gasoline (minimum 87 octane, maximum 10% ethanol/E10).
What is the weight of the 2020 Suzuki DF250ATX?
The dry weight is approximately 604 lbs (274 kg), making it a light and balanced option for a 4.0-liter V6 outboard.
Can this motor be used in twin-engine configurations?
Yes. The 25″ extra-long shaft length makes it a popular choice for both single-engine center consoles and twin-engine offshore setups.
Product Disclaimer
All product specifications, compatibility details, and performance data regarding the 2020 Suzuki 250HP 4-Stroke (DF250ATX) are provided for informational and purchasing reference only. Engine performance may vary based on boat weight, propeller selection, hull design, and operating conditions. Always consult the official manufacturer service manual for precise installation, torque specifications, and maintenance intervals.
