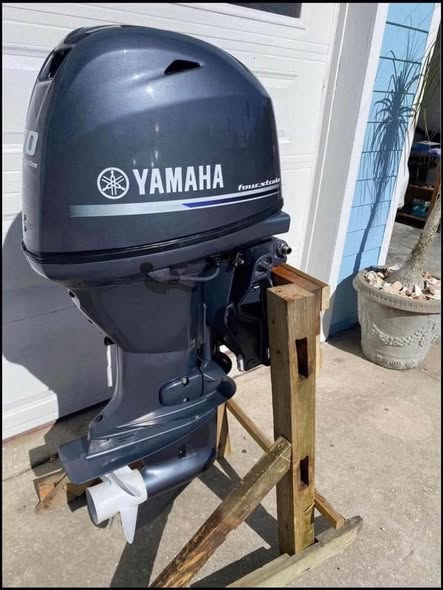

The Yamaha 70HP Outboard Motor (F70LA) is a class-leading, lightweight 4-stroke marine engine designed to deliver maximum power-to-weight performance for skiffs, center consoles, pontoon boats, and aluminum fishing vessels. Engineered with a unique 16-valve single overhead camshaft (SOHC) configuration on a 996 cc platform, this outboard produces top-tier throttle response, mid-range punch, and exceptional fuel efficiency without burdening your boat’s transom with excess weight.
As part of our dedicated Yamaha Outboard Motors pillar hub, this motor provides optimal power density for vessels requiring lightweight transom options. You can also review our complete inventory of 4-Stroke Outboard Motors to compare alternative horsepower ratings across top marine brands.
Equipped with precision Electronic Fuel Injection (EFI), the F70LA platform optimizes air-and-fuel delivery for clean, efficient combustion. Its lightweight footprint aids hull draft and balance, helping shallow-water boats glide smoothly through tight flats and open bays.
Advanced Fuel Injection & 16-Valve SOHC Design
Every Yamaha 70HP Outboard Motor features an advanced 16-valve cylinder head that increases intake and exhaust valve area relative to engine displacement. This design significantly improves volumetric efficiency, resulting in rapid hole-shots and high top-end RPM capability.
Integrated with Yamaha’s Engine Control Module (ECM) and Command Link® gauges, operators get clear visibility into real-time operational data including oil pressure, battery voltage, and fuel burn rates. For anglers needing precise speed control while trolling, the Variable Trolling RPM System (VTS®) lets captains dial in engine speeds in exact 50-RPM increments directly from the helm display or tiller switch. A reliable 17-amp alternator ensures onboard electronics and livewell pumps stay continuously energized.
Marine Corrosion Defense & Casing Construction
Engineered to excel in demanding saltwater marshes as well as freshwater lakes, Yamaha constructs this 70HP engine housing using high-grade YDC-30 aluminum alloy. Multiple electro-deposition paint coats, topped with an acrylic clear coat, create a tough protective barrier against salt oxidation and UV damage.
Internal cooling channels incorporate multiple sacrificial anodes to protect vital internal metallic passages against galvanic corrosion. Maintaining the engine post-trip is fast and simple using the front freshwater flushing port, which allows boaters to rinse salt deposits and debris out using a standard garden hose without running the engine.
Quiet Operation & Hydrodynamic Gearcase Design
Featuring a tuned air intake silencer system and soft-rubber isolation mounts, the Yamaha 70HP Outboard Motor runs smoothly with minimal engine noise and vibration. Cruising across open water remains pleasant for everyone on board, allowing easy conversation at the helm.
The lower unit features a streamlined gearcase with a high 2.33:1 gear ratio, enabling the engine to swing a larger diameter propeller. This extra leverage generates incredible thrust, lifting heavier hulls onto plane effortlessly and improving heavy-load handling around docks and tight waterways.
Technical Specifications
| Feature | Specification |
| Engine Type | 4-Stroke, 16-Valve SOHC Inline 4-Cylinder |
| Displacement | 996 cc (0.996L) |
| Bore x Stroke | 65.0 mm x 75.0 mm |
| Full Throttle RPM Range | 5,800 – 6,300 RPM |
| Fuel Delivery | Electronic Fuel Injection (EFI) |
| Alternator Output | 17 Amp |
| Gear Ratio | 2.33:1 |
| Dry Weight | ~253 lbs (115 kg) |
| Recommended Oil | Yamalube® 4M FC-W® 10W-30 |
| Trim & Tilt | Power Trim & Tilt |
Industry Standards & Certification
Yamaha marine engines are built to comply with high safety and environmental specifications. To review vessel load guidance, performance safety testing, and emissions compliance, explore resources provided by the National Marine Manufacturers Association (NMMA) and inspect clean air guidelines established by the U.S. Environmental Protection Agency (EPA).
Choosing the Right Shaft Length & Rigging
Selecting the proper shaft length ensures optimal prop clearance and prevents engine ventilation. The Yamaha 70HP Outboard Motor (F70LA) comes standard with a 20-inch (L) shaft, making it a direct fit for standard 20-inch transom boats. This engine pairs cleanly with traditional mechanical side-mount remote controls or Yamaha’s Multifunction Tiller Handle setup.
Frequently Asked Questions
Q: What makes the Yamaha F70LA unique compared to other 70HP outboards?
A: The F70LA utilizes a 16-valve 4-cylinder layout on a lightweight 996 cc engine block, making it one of the lightest 70HP 4-stroke outboard motors in its class while delivering exceptional torque and speed.
Q: What fuel octane is recommended for the Yamaha 70HP Outboard Motor?
A: Yamaha recommends 87 Octane unleaded fuel. For maximum fuel system longevity, using 89 Octane ethanol-free marine gasoline is highly recommended.
Q: Can this engine be fitted with a tiller handle?
A: Yes, the 70HP model can be rigged with Yamaha’s Multifunction Tiller Handle, placing throttle, shift, trim, and variable trolling controls conveniently at hand.
Q: Does this outboard come with full factory warranty protection?
A: Yes, all new Yamaha outboard motors purchased through Amita Outboards carry full manufacturer warranty coverage. See our Warranty Policy for full terms.
Q: How is the engine packaged for shipping?
A: Outboard motors are securely mounted inside reinforced wooden crates and shipped via freight line. Review our Shipping & Freight Policy for delivery details and scheduling instructions.
Disclaimer: Product specifications, engine dimensions, weight, and availability are subject to manufacturer updates. Always verify transom height and boat weight capacities prior to installation.
