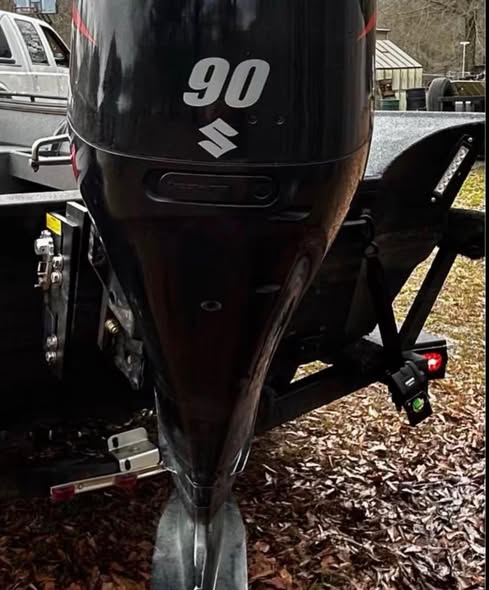

The Suzuki 90HP 4-stroke outboard (Model DF90A) is a landmark engine in the mid-range marine propulsion category. Built around a compact 1502 cc inline four-cylinder DOHC powerhead, this engine delivers impressive displacement-to-weight performance, making it an outstanding choice for mid-sized fishing skiffs, pontoon repowers, dual consoles, and bay craft.
Equipped with Suzuki’s digital multi-point Electronic Fuel Injection (EFI) and signature Lean Burn technology, the Suzuki 90HP 4-stroke outboard provides effortless turn-key starting, smooth power delivery across the RPM band, and incredible fuel efficiency over long days on the water.
Complete Technical Specifications
-
Model Year: 2009
-
Horsepower: 90 HP
-
Engine Type: Inline 4-Cylinder, DOHC 16-Valve
-
Displacement: 91.7 cu. in. (1502 cc)
-
Fuel Delivery: Multi-Point Sequential Electronic Fuel Injection (EFI)
-
Starting System: Electric Start
-
Shaft Length Options: 20 in. (Long Shaft) / 25 in. (Extra Long Shaft)
-
Full Throttle RPM Range: 5300 – 6300 RPM
-
Weight: Approx. 341 lbs (155 kg)
-
Gear Ratio: 2.59:1
-
Alternator Output: 27 Amp
-
Trim & Tilt: Power Trim and Tilt
Performance Features of the Suzuki 90HP 4-Stroke Outboard
Suzuki Lean Burn Control System
The standout advantage of choosing a Suzuki 90HP 4-stroke outboard is its intelligent Lean Burn system. By analyzing engine load and operating conditions in real time, the engine computer delivers a leaner air-to-fuel ratio, significantly reducing overall fuel consumption during mid-range cruising speeds.
Two-Stage Gear Reduction & Offset Driveshaft
Unlike conventional mid-range outboards, the Suzuki 90HP 4-stroke outboard utilizes an offset driveshaft paired with a two-stage gear reduction (2.59:1 ratio). This unique gearing configuration enables the engine to turn a larger diameter propeller, outputting strong low-end thrust to pop heavy hulls onto plane quickly.
Self-Adjusting Oil-Bath Timing Chain
Eliminating the need for periodic rubber timing belt replacements, the DF90A uses a self-adjusting timing chain running in an internal oil bath. This feature decreases regular maintenance overhead while enhancing long-term engine reliability.
Advanced Corrosion Defense & Saltwater Protection
-
Anti-Corrosion Finish: Suzuki coats high-grade marine aluminum alloy with a multi-layered protective barrier engineered to withstand harsh saltwater exposure.
-
Freshwater Flush Port: An accessible freshwater flushing port simplifies engine wash-down after returning from saltwater excursions.
-
Galvanic Zinc Anodes: Multiple sacrificial anodes protect internal cooling passages, lower gearcase, and trim housing from galvanic corrosion.
Marine Engineering & Weight Distribution
Engineered for optimal hull balance, the Suzuki 90HP 4-stroke outboard moves its powerhead forward relative to the transom bracket using Suzuki’s offset driveshaft. This shifts the engine’s center of gravity forward, reducing transom squat, improving steering responsiveness, and stabilizing the boat at high speeds.
Whether you are upgrading an older two-stroke setup or repowering a modern pontoon, this lightweight 1.5-liter engine offers clean combustion, quiet operation, and dependable hole-shot power.
Installation, Maintenance & Setup Guidelines
When installing or servicing your Suzuki 90HP 4-stroke outboard, staying up to date with routine maintenance intervals ensures long-term operational safety and peak engine performance.
According to independent research on marine engine corrosion mechanics from the Association for Materials Protection and Performance (AMPP), routine freshwater flushing and active anode replacement are crucial to preventing localized pitting in aluminum marine alloys exposed to coastal environments. Additionally, environmental protection guidelines from the U.S. Environmental Protection Agency (EPA) emphasize maintaining sealed fuel systems and proper engine tuning to limit marine hydrocarbon emissions.
Related Marine Equipment & Categories
To complete your boat build, explore our related outboard categories:
-
View our full selection of Yamaha Outboard Motors for alternative repower options.
-
Check out Mercury Marine Engines for high-performance setups.
-
Explore our full range of Tohatsu Outboard Motors or browse all options in our main Outboard Motor Shop.
-
Have questions about shipping or warranty coverage? Visit our FAQs or contact us directly via our Contact Page.
Frequently Asked Questions (FAQ)
What battery is recommended for the 2009 Suzuki 90HP 4-stroke outboard?
A 12-volt marine starting battery rated for a minimum of 650 Marine Cranking Amps (MCA) or 512 Cold Cranking Amps (CCA) is recommended to supply proper voltage to the EFI system and starter motor.
What type of engine oil should I use in this outboard?
Use SAE 10W-40 or 10W-30 FC-W certified 4-stroke marine engine oil. FC-W rated oils contain essential anti-wear and corrosion inhibitors formulated for demanding marine duty cycles.
Does the Suzuki 90HP 4-stroke outboard require mixed fuel?
No. As a true 4-stroke engine, oil is housed in an internal oil sump. Fill your fuel tank with unleaded gasoline (minimum 87 octane, maximum 10% ethanol/E10).
What is the dry weight of the DF90A?
The motor weighs approximately 341 lbs (155 kg), making it one of the lightest engines in the 90 horsepower class.
Does this engine use a timing belt or a timing chain?
The 2009 Suzuki DF90A uses an internal self-adjusting timing chain running in an oil bath, eliminating the maintenance requirement of replacing rubber timing belts.
Is the 2009 Suzuki 90HP suitable for pontoon boats?
Yes. Thanks to its 2.59:1 gear ratio, it turns larger propellers that deliver strong displacement torque, making it an excellent match for pontoons and heavy skiffs.
Product Disclaimer
All product specifications, compatibility details, and performance data regarding the 2009 Suzuki 90HP 4-Stroke (DF90A) are provided for informational and purchasing reference only. Engine performance may vary based on boat weight, propeller selection, hull design, and operating conditions. Always consult the official manufacturer service manual for precise installation, torque specifications, and maintenance intervals.
